Product Overview
SG100-D series is an intelligent hot swappable fixed multi gas detector, which is easy for maintenance after installation. It can monitor 4 gases for the continuous monitoring in one unit. With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 intrinsically safe grade. Adopt magnetic wand design, it’s safe and easy to do menu navigation in explosion areas.

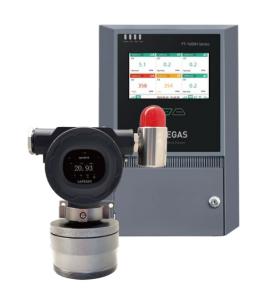

Product Picture
Product Advantage
1) IP66/IP68 water & dust resistant
2) Standard 1 set of 4-20 mA current signal(3 wires), RS485 Modbus, 2 sets of relay signal output;
3) Optional with 4 sets of 4-20 mA current signal(3 wires)
4) Optional LORA,4G wireless transmission modes canbe selected
5) Module chamber design, no need to disassemble of the whole machine or return for calibration when maintenance, just replace the sensor chamber only and can work properly
6) One-person calibration is easily performed using calibration cap
7) Quick site installation using a mounting plate accessory
Product specifications
| Detected Gas | CO/H2S/O2/LEL |
| Principle | Catalytic(LEL)Electrochemistry(O2/CO/H2S) |
| Measure Range | LEL:0-100%LEL,O2:0-30%vol,CO:0-1000ppm,H2S:0-100ppm |
| Resolution | LEL:1%LEL,O2:0.1%vol,CO:1ppm,H2S:0.1ppm |
| Install Method | Wall-mounted |
| Events | 1000 sets per channel, can download by GPC |
| Precision | ≤±2%FS or ±10%(Depends on sensor) |
| Response time | T90<60s(Depends on sensor) |
| Repeatability | ±2%F.S |
| Temperature | -40℃～70℃(catalytic sensor),-20℃～50℃(Electrochemistry sensor) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ；ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb |
| Degree of protection | IP66/IP68 |
| Power | 12-30V DC |
| Dimensions | 178×129×70mm |
| Weight | 1.4kg (No mounting bracket ,alarm light) |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Standard configuration list
1) Gas detector 1 piece
2) Magnetic wand 1 piece
3) User manual 1 piece
4) Certificate of Conformity/Warranty Card 1 piece
5) Mounting plate 1 piece
6) M4 bolt 3 piece
7) M4 nut 3 piece
8) M4 Screw pad 3 piece
9) M4 flat mat 3 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
